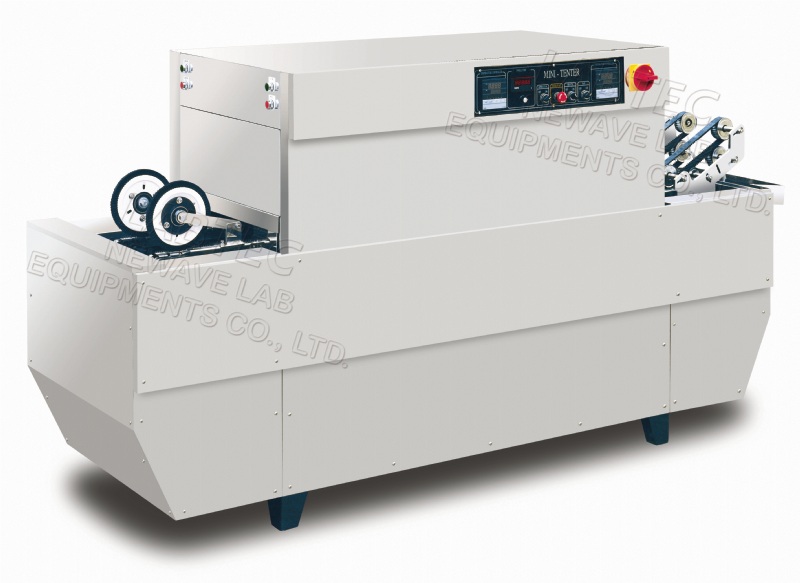

Laboratory tenter

It is used to simulate the production conditions such as temperature, reaction time, to produce the right samples for customer's approval & the proven data for the following productions. With automatic fabric discharging device and receiving trough, it offers higher efficiency and speed to complete the continuous works.
 Sample width： from 150mm up to 350mm.
 Temperature range：Max. 250℃. Accuracy：+/- 1%
 Electric data：220 / 380V x 3PH x 18KW.
 Length of chamber：145 cm.
 Circulation fan：3 sets of circulation fan motor
 Chamber dwelling time：20sec ~ 6min
 Dimension：W90 x D263 x H135 cm

---
