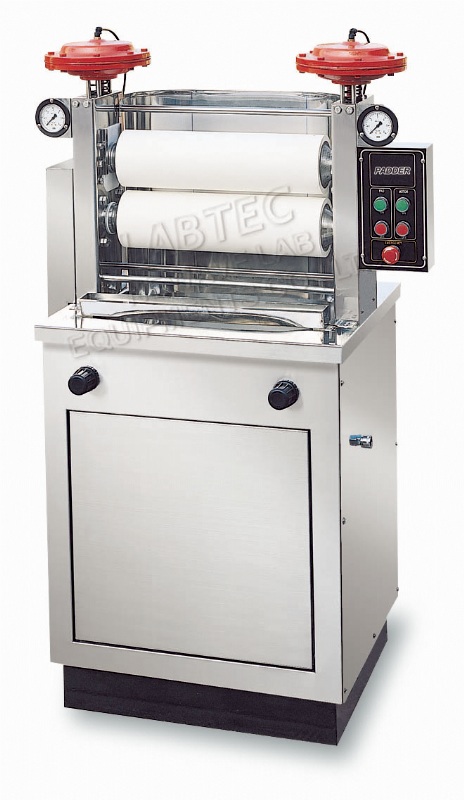

Laboratory Padding Mangle-vertical

It uses compressed air to move the rubber rolling wheel. The pick-up rate can be adjusted to match the production line. It suits the tests of dyestuff, pigment, auxiliary chemical and resin. When it is in conjunction with Laboratory Stereotypes dryer(M-3) or laboratory tenter(M-6), value-added sample can be produced and submitted to customer.
 Specification of roller：NBR rubber coated, with 125 mm diameter, 450 mm length.
 Hardness of roller：70 ± 2 degrees and the pressure resistance is 6kg/cm2
 Speed of roller rotation：10~12RPM (Speed adjustor is optional)
 Adjustment of pressure：One pair of pressure regulator valves. They can adjust the roller pressure individually on right/left side. Two pressure indicator.
 Safety device：Emergency button switch and knee pedal touch.
 Models specification：P-AO，P-BO，P-AI，P-BI
 Air compressor is optional.
 Dimension：P-A W92 x D61 x H145 cm
P-B W92 x D62 x H125 cm

---
