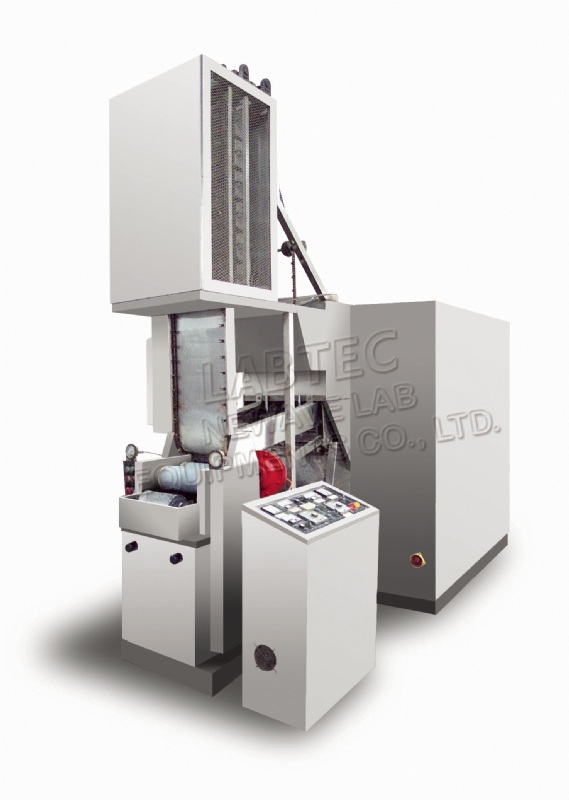

This machine can simulate the process of production. After padding, The samples are fixed onto the chain by clipped stick. Through these IR Pre-drying, drying, and thermosol processes, the samples will be delivered to the trough finally. The procedure can be changed according to users’ need. Padding part:Horizontal type NBR rubber coated roller 125 mm diameter and 300 mm length. A rotatable chemical trough which consists four containers. Pre-drying stage:12 infra-red heating lamps in two rows Drying stage:Total length is 1800mm, Hot air circulation, the temperature range is 100°C ~ 180°C Thermosol part:Total length is 1500mm, Hot air circulation, the temperature range is 250°C (max.) Machine dimension:300 x 120 x 290 cm
