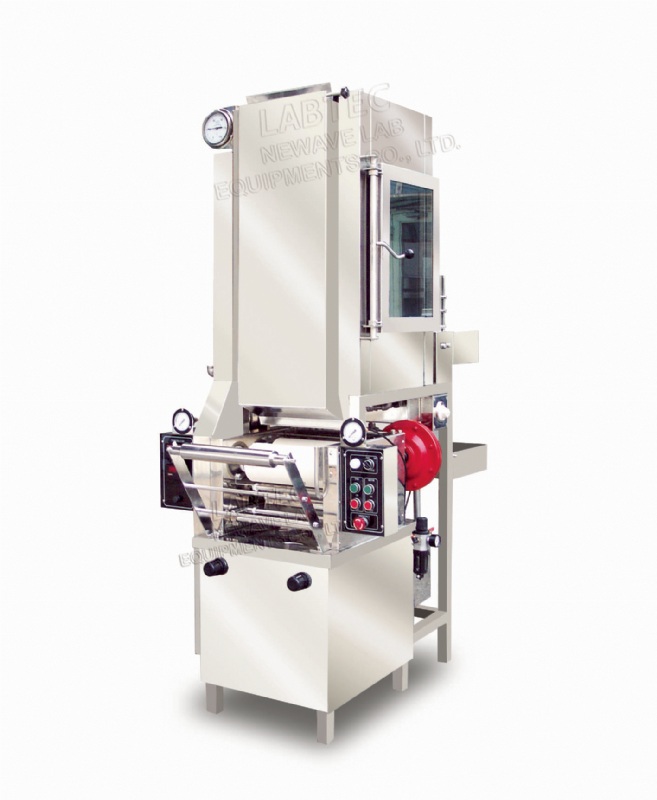

This range is suitable for the dyestuff which needs to be fixed by saturated steam process and for recipe making in continuous processing way. It takes less than 4 second for the dyed sample fabric to enter into the steam chamber. This feature helps to avoid the risk of oxidation before the reaction is completed. Padding part:Horizontal type NBR rubber coated roller 125 mm diameter and 300 mm length Steam chamber:Total length 6 meter, dwelling time 20 ~ 120sec Water sea bath at outlet Temperature range:Saturated steam 102℃ Air compressor、washing compartments、steam generator can be added as per request of customer (optional) Dimension:W85 x D134 x H200 cm
