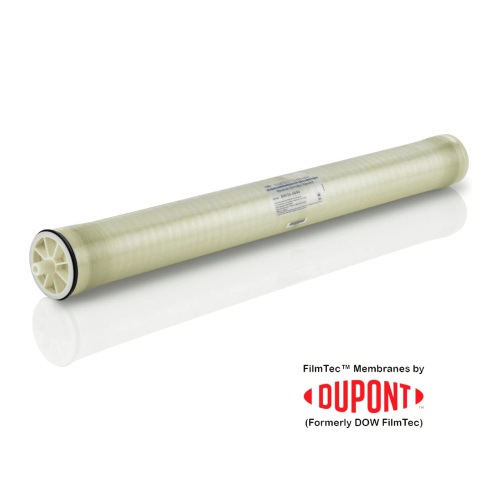

Membrane

Key Features
Offers exceptional permeate quality.
Delivers excellent silica, boron, nitrate, TOC and ammonium rejection.
Excellent durability resulting in stable, long-term performance.
Enhanced fouling protection thanks to 34 mil feed spacer.
Typical Properties
Product
Active Area ft2 (m2)- 400 (37)
Feed Spacer Thickness (mil)-34-LDP
Permeate Flow Rate gpd (m3/d)-11,500 (43.5)
Stabilized Salt Rejection (%)-99.8
Minimum Salt Rejection (%)-99,6

1. Permeate flow and salt rejection based on the following standard conditions: 2,000 ppm NaCl, 225 psi (15.5 bar), 77°F (25°C), pH 8 and 15% recovery.
2 LDP Low Differential Pressure
3. Flow rates for individual elements may vary but will be no more than 15% below the value shown.
4 Sales specifications may vary as design revisions take place.

---
