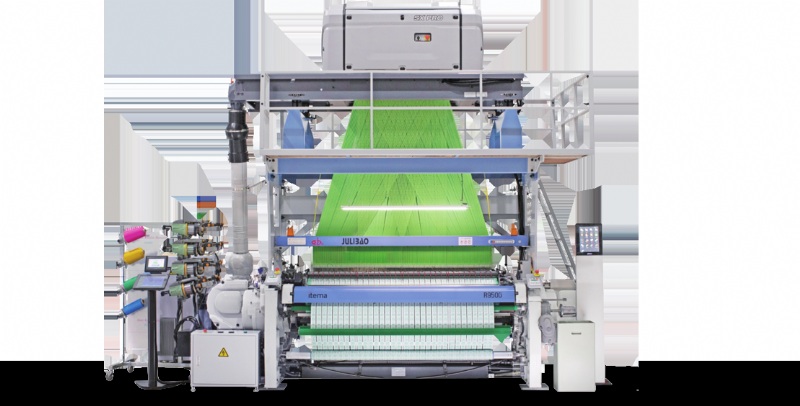

Julibao Woven Label Machine.

Machine Configuration
Base Loom:
--Loom : Itema
--Speed : 600 rpm (max)
--Working Width : 1600mm
--Cycle Numbers : 4 repeats for taffeta (1 repeats = 40cm),
--Weft Density Adjustment : Adjust in the range between 2 to 200 picks/cm.
--Take-up : Electronic take-up
--Let-off : Microprocessor control electronic let-off device with tension device
--Drive : Direct drive by one main super motor - Hi Drive
--Weft Tension : Double-twist electronic weft storage device adjustment
--Weft Searching System : Electronic automatic detecting weft finder
--Weft Selector : 8 color electronic controlled color selector
--Beam Diameter : 800mm
--Cloth Roller Diameter : 600mm (max)
--Main motor Power : 7.5 kw (approx.)

Jacquard:
--Model : Staubli-SX Pro
--Hooks : 2400 hooks
--Control System : TC8 Latest Electronic control system
--Power : 1.3 KW
--Weight : 1500KG
--Jacquard Support Frame : Using double high tensile steel plate superstructure design, easy
access with

---
